Thermocouple / RTD Calibrator

CatalogCatalog

RTD Calibrator

RTD電阻校正器

RTD Process Calibrator PIE 211

Model No. / PIE-211

  • Source and Read Multiple RTD Curves plus Ω
  • Automatically Detect 2, 3 & 4 Wire Connections
  • Guaranteed Compatible with all Instrumentation
  • Instantly select three outputs with EZ-CHECK switch
  • Easily find trip points with two speed EZ-DIAL knob & Automatic Stepping
  • Easily Change RTD Types & Scale
  • Easy-to-Read Display
MORE..
RTD電阻校正器

RTD Process Calibrator PIE 311

Model No. / PIE-311

  • Source and Read Multiple RTD Curves plus Ω
  • Automatically Detect 2, 3 & 4 Wire Connections
  • Guaranteed Compatible with all Instrumentation
  • Instantly select three outputs with EZ-CHECK switch
  • Easily find trip points with two speed EZ-DIAL knob & Automatic Stepping
  • Easily Change RTD Types & Scale
  • Verify RTD Temperature & Output
  • Easy-to-Read Display
MORE..
RTD電阻校正器

RTD Process Calibrator PIE 311Plus

Model No. / PIE-311Plus

  • Two Calibrators in One
  • Troubleshoot loop problems
  • Calibrate directly in temperature (°C & °F)
  • Measure RTD sensors
  • Compatible with ALL process instruments
  • Checkout all your 4 to 20 mA loops & instruments
  • Easy to use in the Plant, Field or Shop
  • Fast calibration with automatic output stepping
MORE..
RTD電阻校正器

Single Type RTD Calibrator PIE 510B

Model No. / PIE-510B

  • Accurate to ±0.25°C (±0.5°F) for Pt 100 Ohm RTD’s with 0.1° resolution
  • Source one dedicated RTD curve with Direct Temperature Output
  • Selectable °C or °F
  • Several Manufacturers RTD Curves Available – plus custom curves for Platinum, Copper & Nickel sensors
  • Guaranteed compatible with devices using pulsed excitation currents including PLCs, DCS, multi channel recorders, etc.
  • Works with a wide variety of smart transmitters including popular Rosemount and Honeywell models
MORE..
RTD電阻校正器

10 Type RTD Calibrator PIE 511B

Model No. / PIE-511B

  • Accurate to ±0.25°C (±0.5°F) for Pt 100 Ohm RTD’s with 0.1° resolution
  • Source 10 RTD curves with Direct Temperature Output or Ohms
  • Selectable °C or °F
  • Curves included for Platinum 100 and 1000 Ohm, Nickel 110 and 120 Ohm well as for Copper 10 and 50 Ohm
  • Guaranteed compatible with devices using pulsed excitation currents including PLCs, DCS, multi channel recorders, etc.
  • Works with a wide variety of smart transmitters including popular Rosemount and Honeywell models
MORE..
RTD電阻校正器

4 Type Thermocouple Calibrator PIE 322

Model No. / PIE-322

  • Source and Read Four T/C Types plus mV
  • Resolution to 0.1 °F & °C; Accurate to 0.2°
  • Instantly select three outputs with EZ-CHECK switch
  • Easily find trip points with two speed EZ-DIAL knob & Automatic Stepping
  • Easily Change T/C Types & Scale
  • Easy-to-Read Display
  • Use in the Plant, Field or Shop
MORE..
RTD電阻校正器

14 Type Thermocouple Calibrator PIE 422

Model No. / PIE-422

  • Source and Read Fourteen T/C Types plus mV
  • Resolution to 0.1 °F & °C; Accurate to 0.2°
  • Cold Junction Sensor Accurate to 0.05°C
  • Verify Heat Treating Uniformity Survey Recorders and perform System Accuracy Tests
  • Instantly select three outputs with EZ-CHECK switch
  • Easily find trip points with two speed EZ-DIAL knob & Automatic Stepping
  • Easily Change T/C Types & Scale
MORE..
RTD電阻校正器

Single Type Thermocouple Calibrator PIE 520B

Model No. / PIE-520B

  • Accuracy ±(0.015% of mV Setting + 0.009mV)
  • Calibrate in temperature for your T/C type
  • Adjustable temperature output in selectable 0.1°C or 0.1°F steps
  • Select from Types J, K, E, T, R, S, B, N, G, C, D, L, U and P
  • Typical accuracy of ±0.35°C (0.5°) for Type K
  • EZ-Dial™ knob easily adjust output by °C or °F with 0.1° resolution
  • Three position EZ-Check™ switch for 0% and 100% span adjustments
MORE..
RTD電阻校正器

14 Type Thermocouple Calibrator PIE 521B

Model No. / PIE-521B

  • Accuracy ±(0.015% of mV Setting + 0.009mV)
  • Calibrate in temperature for your T/C type
  • Adjustable temperature output in selectable 0.1°C or 0.1°F steps
  • Types J, K, E, T, R, S, B, N, G, C, D, L, U and mV
  • Typical accuracy of ±0.35°C (0.5°) for Type K
  • EZ-Dial™ knob easily adjust output by 0.1°C or 0.1°F
  • Three position EZ-Check™ switch for 0% and 100% span adjustments
MORE..
RTD and Thermocouple Calibrator

RTD and Thermocouple Calibrator PIE 525B

Model No. / PIE-525B

  • Calibrate RTD instruments to 0.1 & 0.01 °F & °C
  • Calibrate with Confidence
  • Verify Heat Treating Uniformity Survey Recorders and perform System
  • Troubleshoot RTD Sensors & Instruments
  • Faster Calibrations
MORE..

Loop Calibrators

Loop Calibrators

4-20 mA Loop Calibrator PIE 334

Model No. / PIE-334

  • Source 0.00 to 24.00 mA & -25.0 to 125.0% of 4-20 mA
  • Read 0.00 to 52.00 mA
  • Read -99.99 to 99.99 V
  • Simulate 2-Wire Transmitters; Power & Read 2-Wire Transmitters
  • Accurate to ±0.025% of Span at 4.00 & 20.00 EZ-CHECK outputs
MORE..
mA Loop Diagnostic Calibrator

mA Loop Diagnostic Calibrator PIE 334Plus

Model No. / PIE-334Plus

  • Source 0.00 to 24.00 mA & -25.0 to 125.0% of 4-20 mA
  • Read 0.00 to 52.00 mA
  • Read -99.99 to 99.99 V
  • Simulate 2-Wire Transmitter, Power & Read Transmitters
  • Menu Selectable 250 Ohm resistor for HART compatibility
MORE..
mA Loop Diagnostic Calibrator

mA Loop Diagnostic Calibrator PIE 434

Model No. / PIE-434

  • Source 0.000 to 24.000 mA & -25.00 to 125.00% of 4-20 mA
  • Read 0.000 to 24.000 mA & -25.00 to 125.00% of 4-20 mA
  • Read -60.00 to +60.00 VDC
  • Simulate 2-Wire Transmitter, Power & Read Transmitters
  • Menu Selectable 250 Ohm resistor for HART compatibility
MORE..
mA and Voltage Diagnostic Calibrator

mA and Voltage Diagnostic Calibrator PIE 532

Model No. / PIE-532

  • True ±0.012% of reading accuracy
  • Source and Read 0.000-24.000 mA
  • Simulate 2-Wire Transmitters
  • Power 2-Wire Transmitters and Read 0.000-24.000mA
  • Display current in mA or -25.00-125.00 % of 4-20 mA
MORE..
Multifunction Process Calibrator

Multifunction Process Calibrator PIE 820

Model No. / PIE-820

  • Lighten up your toolbox
  • Technician friendly operation
  • Use it as a milliamp and voltage calibrator
  • Calibrate directly in temperature (°C & °F)
  • Checkout flow and vibration systems
MORE..
Multifunction Diagnostic Process Calibrator

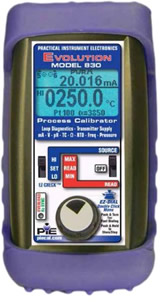

Multifunction Diagnostic Process Calibrator PIE 830

Model No. / PIE-830

  • 2 Check all loop parameters at once with the LoopScope
  • 3 Automatically detect 2, 3 or 4 wire RTDs
  • 4 Swap out faulty transmitters to diagnose control issues
  • 5 Troubleshoot wiring problems without a multimeter
  • Lighten up your toolbox
MORE..
10-50 mA Multifunction Process Calibrator – PIE 850

10-50 mA Multifunction Process Calibrator – PIE 850

Model No. / PIE-850

  • Lighten up your toolbox
  • Technician friendly operation
  • Use it as a milliamp and voltage calibrator
  • Troubleshoot Loop problems
  • Check all loop parameters at once with the LoopScope
MORE..
