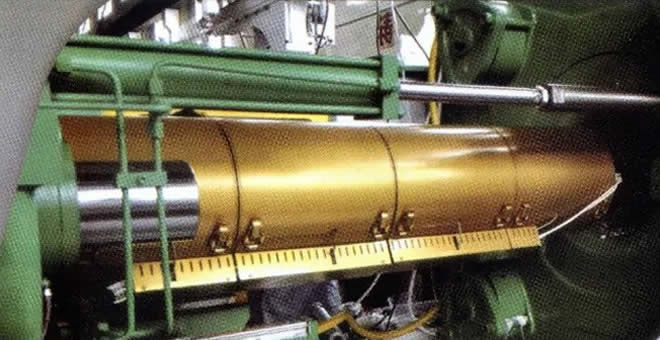

FAQInfrared electric heating coil heater
The infrared radiation heating mode with high temperature insulation layer is efficient to reduce the heat loss. The surface temperature of infrared heater is around 60°C in normal operation temperature at 300°C thus improving the working environment.
30%~68% energy-saving compared to traditional Mica heater stable operation temperature more than 650°C service life more than 8 years.Most efficient,energy-saving heater currently.
OWH-045
OWH-045
| Style | Heating Eiement | Reflecting Layer | Nano Coating | Thermal Insulator | Shell | Surface Temperature | Power-Saving rate | Warranty | Service Life |
|---|---|---|---|---|---|---|---|---|---|
| OWNG5 | Kanthal APM | 323 Stainless Steel | Titanium Dioxide | 1430 Ceramic Fiber Layer& Nano Layer | 304 Stainless Steel & Double-side Coating | 35°C~50°C | ≥35% | 4 years | 8 years |
| OWNG3 | OCr25AI5 | Aluminum Plate | - | 1260 Ceramic Fiber Layer | 201 Stainless Steel | 50°C~65°C | ≥25% | 2 years | 4 years |
